Hot Stamping on Packaging Boxes – Effects, Materials, and Design Decisions

Hot stamping with metallic foil is one of the most popular methods to add metallic effects to packaging. A foil logo is very visible and highlights the product name. In addition to the look of the foil, the appearance of hot stamped foil is determined by many other factors: the substrate, the original print, the stamping plate, the temperature, the pressure, the registration and last but not least the area where the stamping takes place.

When ordering hot stamping packaging, buyers are not just looking to see if a product can be stamped into a box. Rather, they are trying to determine what stamping effect would best complement a package’s surface, design, quantity of production, and overall packaging configuration. The following article explores the various hot stamping effects, material choices and quality control measures.

Kingever Technology, a supplier of packaging products, carries out printing, hot stamping, laminating, die-cutting and box making in its packaging department. According to supplied company information, Kingever Technology is a factory founded in 2001, which covers an area of over 20,000 square meters. There are nearly 200 people working in the production and technical department.

What Is Hot Stamping on Packaging Boxes?

How Heat and Pressure Transfer the Foil

In the hot stamping process a foil layer is transferred to the printed surface by means of heat and pressure. The technical material supplied for the electroaluminum structure consists of a base film, release layer, color layer, aluminum layer and adhesive layer. The heated plate presses the foil to the printed surface. When the layers are separated, the part required for the box surface adheres.

The Role of the Foil, Adhesive, and Substrate

In hot stamping, a foil layer is glued to the printed surface by heat. For the electroaluminum structure of the box covers, the technical material for the printed surfaces consists of base film, release layer, color layer, aluminum layer and adhesive layer. This material is pressed between the heated plate and the printed surface with high pressure. The separate parts stick to the required surface of the box.

Why Hot Stamping Looks Different From Gold Printing

Metallic print uses metallic ink to print with a printing process. Hot stamping uses a foil layer that is transferred by means of the hot stamping process. It results in a very bright, smooth metallic surface with clear edges. While printing is more efficient for larger surface areas, hot stamping is more efficient for logos, short text, fine decorative lines and single highlights.

Which Hot Stamping Effects Can Be Used?

Flat Hot Stamping for Logos and Text

Flat stamping is the base function to stamp a logo, product name, border or small graphic. It is relatively easy to position and thus perfect for designs that only need a simple metallic accent in a clean way and do not require a raised print.

Three-Dimensional and Relief Hot Stamping

Three-dimensional hot stamping includes foil transfer and the material is formed to concave and convex surfaces using matching molds to create the design as described in the design documents. As the design is formed to create a raised design, such as a logo or pattern, to the surface of the board, an indentation will be visible on the back of the board. Therefore, adequate clear space must be included in the design layout.

Holographic, Diffraction, and Transparent Effects

The holographic and diffraction foils use structured surfaces to change the way that light is scattered off of the surface. The transparent foil delivers depth in a subtle manner without the solid metallic look of a normal foil. These premium presentation foils or security design foils are best used when they are positioned correctly and you have a reason for their use.

How Should Foil and Substrate Be Matched?

Paperboard Surface and Coating Conditions

Choose the foil model in respect of the material and the surface finish of the substrate. A blank board, printed surfaces, coated papers and surfaces that have been laminated can have different transfer characteristics. Please check with the packaging supplier whether the chosen foil has been specifically designed for the material and the end finish described in the artwork.

Small Details Versus Large Stamping Areas

The same foil can be used for fine lines & small letters with the correct setting to maintain edge clarity as well as larger areas for reliable transfer of whole blocks of text and may require different pressures or even foil grades. The supplied material consists of 3 types of foils: for small, general and large stamping areas.

Gold, Silver, Colored, and Specialty Foils

In addition to gold and silver foils, there are many other foil colors including matte, holographic, clear and many more. The actual color of the foil will be affected by the type of paper used, the ink colors and the lighting. It’s always best to view a printed sample rather than rely on your monitor.

How Does the Design Affect the Final Result?

Positioning and Registration

Hot stamping must match with the printed artwork, folds, cut-out areas and embossed regions. A set of technical notes outlining the various methods of positionining using rules, film-plates and outlines are supplied. Multi-color stamping, with effects such as overprinting, requires especially accurate registration as even minor misalignment can affect the interrelationship between colors and printed design.

Fine Lines, Large Areas, and Negative Space

Ensure there is adequate space between fine text and raised details. Fine lines can break and large areas of foil need to be printed with even pressure to prevent irregular transfer. Space around metallic print allows it to be read and allows for the print not to add to overall visual congestion.

Combining Hot Stamping With Embossing or Lamination

The application of foil, embossing, debossing, varnish and lamination can be combined in many ways, and all will affect the surface quality. Thus a sample must show the layers in the exact order in which they would have been produced. The U.S. National Institute of Standards and Technology given here for measurement and color control purposes is independent and from background sources. For specific package results however the manufacturer must be checked with

What Quality Checks Matter Before Production?

Plate and Dieline Verification

Check your stamping plate against your final artwork and dieline. This includes all elements of your artwork such as logo size, fine details, orientation and any bleed. Also check the folds, glue areas and any windows or inserts. An incorrect plate will result in the same mistakes being produced in bulk.k.

Temperature, Pressure, and Dwell-Time Adjustment

See Kingever’s technical information on hot stamping paper. Process temperature for hot stamping is typically set between 100°C and 130°C. In reality temperature will depend greatly on material, foil, pressure, area to be printed and processing time. Higher temperatures than this can result in reduced gloss and affect printing ink and stamp edge. Lower temperatures than this can result in inadequate adhesion or in extreme cases printed transfers to crack. These figures are to be used as general guidance only when setting up the process.

Sample Confirmation and Batch Consistency

Samples are inspected under normal lighting at the same viewing distance as the end product by the customer. The adhesion, cut edges, surface finish, registration and foil relief all need to be checked in addition to the relationship between the sample foil and printed colors. This sample will be retained as a reference sample for the corresponding batch of production. Sample confirmation is prior to production planning and final inspection for Kingever.

Conclusion

Hot stamping is at its best when considered in the context of the overall packaging design and print artwork. Choose a hot stamping effect with a reason, match your hot foil to your substrate, allow for registration and inspect the completed product against a physical sample. It will look much neater and be under much better control and enables the buyer to see potential for waste and for rework.

Contact Kingever Technology

For foil selection, hot stamping effects, packaging samples, or a custom box quotation, contact Kingever Technology through the official contact page.

FAQ

Is hot stamping better than metallic ink?

Hot stamping gives a brighter and more detailed foil surface than metallic ink, but the use of metallic ink is more efficient for large printed surfaces. The decision depends on the design and the quantity to be printed.

Which foil works best on paperboard packaging?

Depending on the kind of paperboard, the ink or coating, the size of the stamping area, and the effect desired, the correct foil must be selected from the supplier and matched to the complete surface condition.

Can hot stamping be used with embossing?

Yes. 3D Hot Stamping transfers a foil and at the same time forms a relief. So you need to check the plate, the pressure, the registration and the back-side clearance all together.

Why do large foil areas need different settings from fine text?

For large areas, uniform transfer over a larger surface area is required whereas fine text requires very clear edges. This can mean different pressure, temperature, dwell time and even different foil.

How Can Buyers Troubleshoot a Foil Sample?

Check the Defect Before Changing the Settings

If foil is missing at the edge of a letter, look at the artwork and plate as well as the press setting. Patchy transfer across a wider area may point to an uneven surface or contact; a clean but weak transfer calls for a check of foil compatibility and the finished coating. Change one variable at a time on the next sample and mark the test, so the team can tell which adjustment helped.

Review Registration Across the Whole Box

Inspect the foil for printing of rules, folds, seams, windows and embossing. A mark which looks to be in the middle of a flat proof may appear to have moved when the carton is folded. If the design includes foil printing on more than one panel, compare the printed panels on the finished folded carton from the view points from which they will be viewed by customers. Any movement is far easier to agree on as part of the pre-production process than to be recalled later.

A Buyer Checklist for a Reliable Foil Result

Review the Artwork at Actual Size

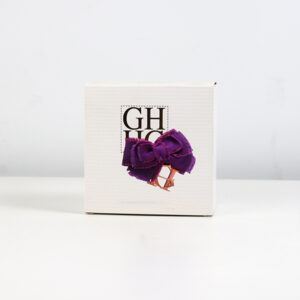

Print the artwork at the finished box size and check the foil area beside folds, glue flaps, windows, and small text. This makes crowded details easier to catch before a plate is made. For a package using textured or specialty paper, compare the effect on the same kind of surface; Kingever’s Specialty Paper Card Boxes are a relevant format to discuss with the supplier.

Approve a Sample That Uses the Full Finish Stack

The sample should use the intended paper, ink, coating, foil, and embossing sequence. Inspect it after handling and under the lighting where the package will be displayed. Record any acceptable registration tolerance and keep the approved sample with the production specification. This prevents a foil effect approved on an isolated paper swatch from being mistaken for the final appearance on a printed and coated box. If the package is intended for food contact, confirm the material and ink system with the supplier against applicable U.S. regulations for indirect food additives. For environmental and recyclability statements, verify the exact material and local collection context against guidance from the U.S. Federal Trade Commission and the U.S. Environmental Protection Agency.
